Instrumentation Modeling :
Fast / Accurate / Automatic Modeling of Instruments

Instrumentation application is one of the Pars Pipe module's abilities that is focusing on easy 3D modeling and replacement of all of the Instrumentation on projects.

Instruments will be designed and modeled by software according to PMS and Standards and it happens automatically just by defining its position on pipe.

These types of instruments are in our Data Base :

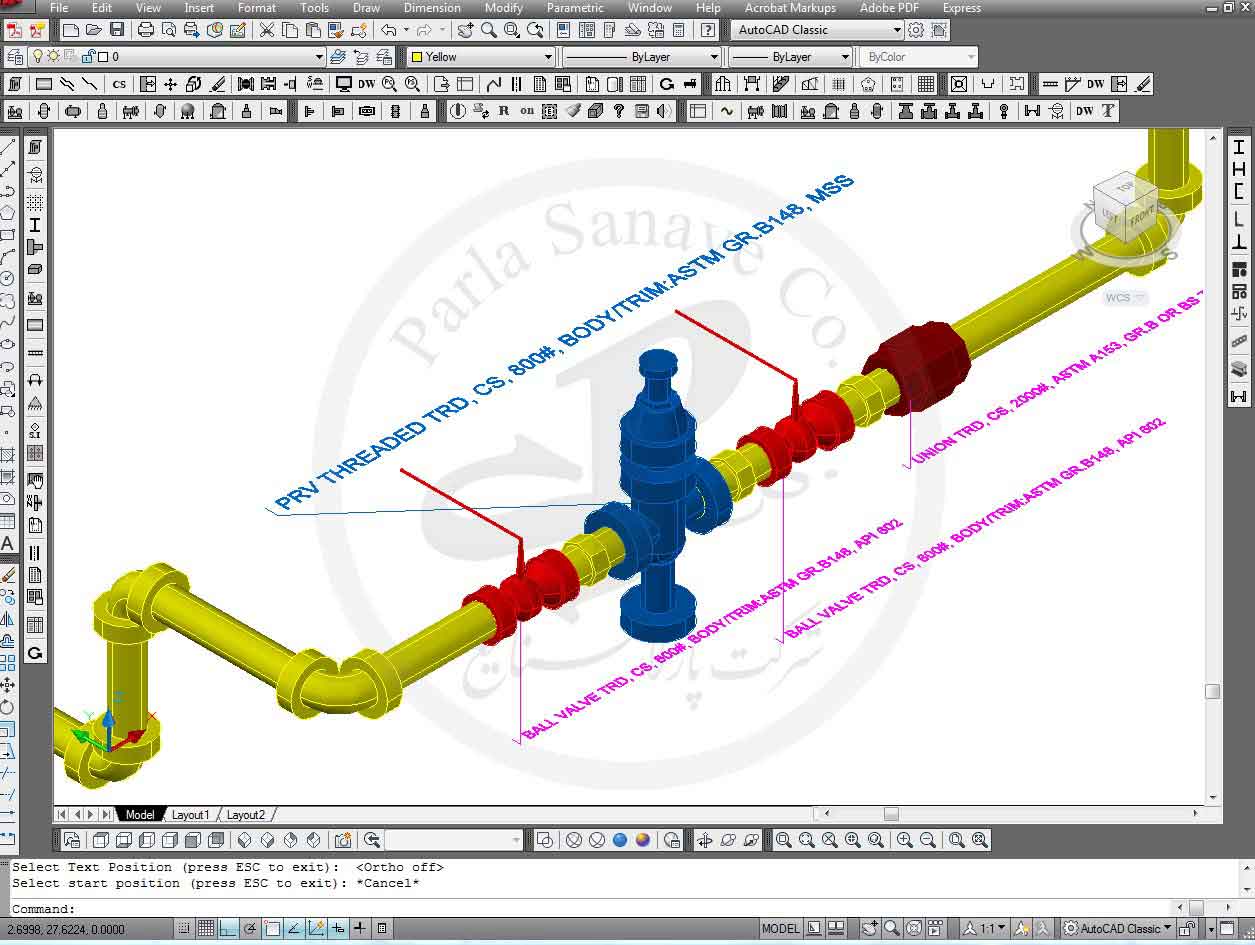

  • Pressure Reducing Valve
  • Ring Syphon Spirax Sarco
  • Steam Trap Bucket
  • Steam Trap Thermostatic
  • Steam Trap Thermodynamic

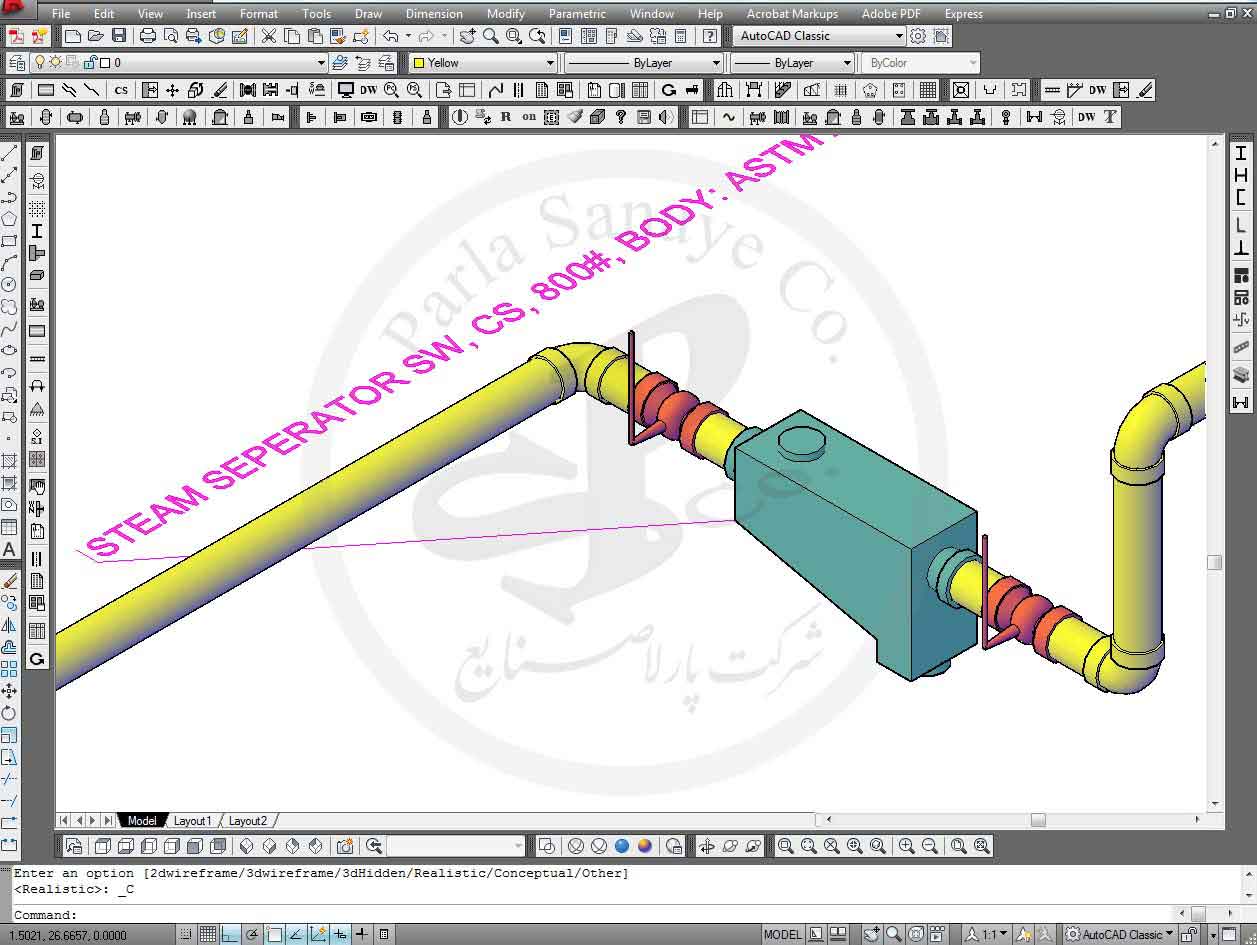

  • Steam Separator
  • Air Vent Auto
  • Air Vent Manual
  • Sight Glass Single
  • Sight Glass Double
  • Siphon U Type
  • Sprinkler
  • Pressure Switch

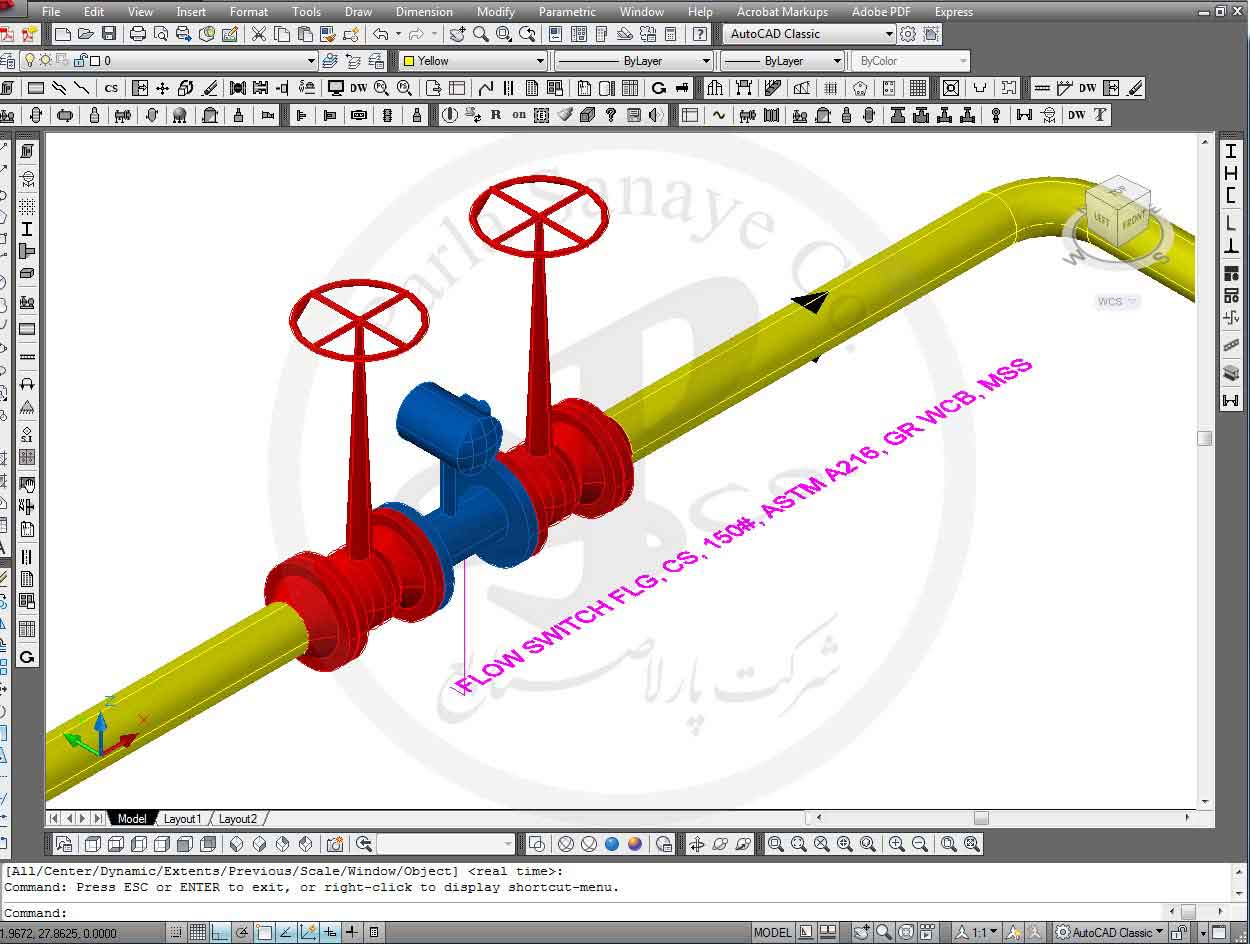

  • Flow Switch
  • Temperature Probes Spirax Sarco
  • Horizontal Dial Thermometer
  • Vertical Dial Thermometer
  • Tube Thermometer
  • Pressure Gauge
  • Level Controller
  • Flow Meter
  • Flow Meter Pipe Line
  • Flow Meter Wafer Type
  • Cock Valve

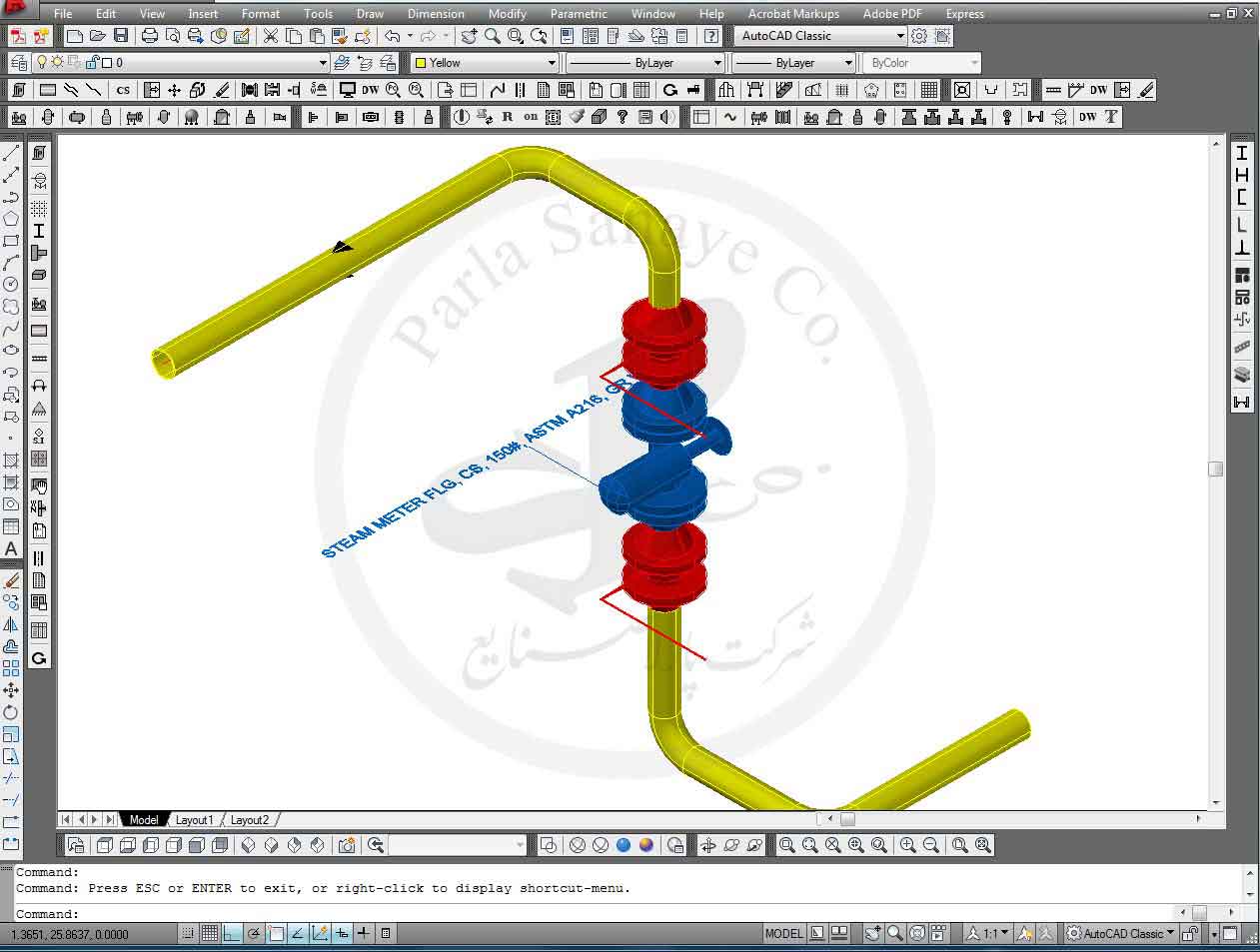

  • Steam Meter
Some Bold Features of this application can mentioned as :
  • Automatically Pipe size recognition.
  • Automatically modeling according to PMS
  • Automatic modeling of Flanges, Threads and etc.

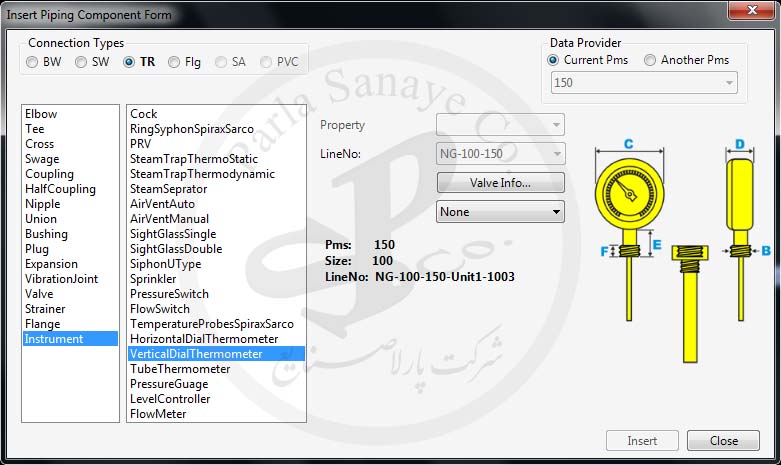

  • Schematic pictures and complete introduction of instrumentation on the menus
