Pars P&ID
Most Dynamic / Most User Friendly P&ID Designing Application

This Module contains a Comprehensive Database of the Oil, Gas and Petrochemical Piping components ( Such as : Control Instruments, Valves, Vessels, Towers, Tanks, Pumps and etc.) all in accordance with international Standards

all the Components and lines have designed as a Dynamic Block which gives the user the ability to design them anywhere he wishes and modify the dimension of all the components anytime.
Some Bold Features of Pars P&ID can be pointed below :

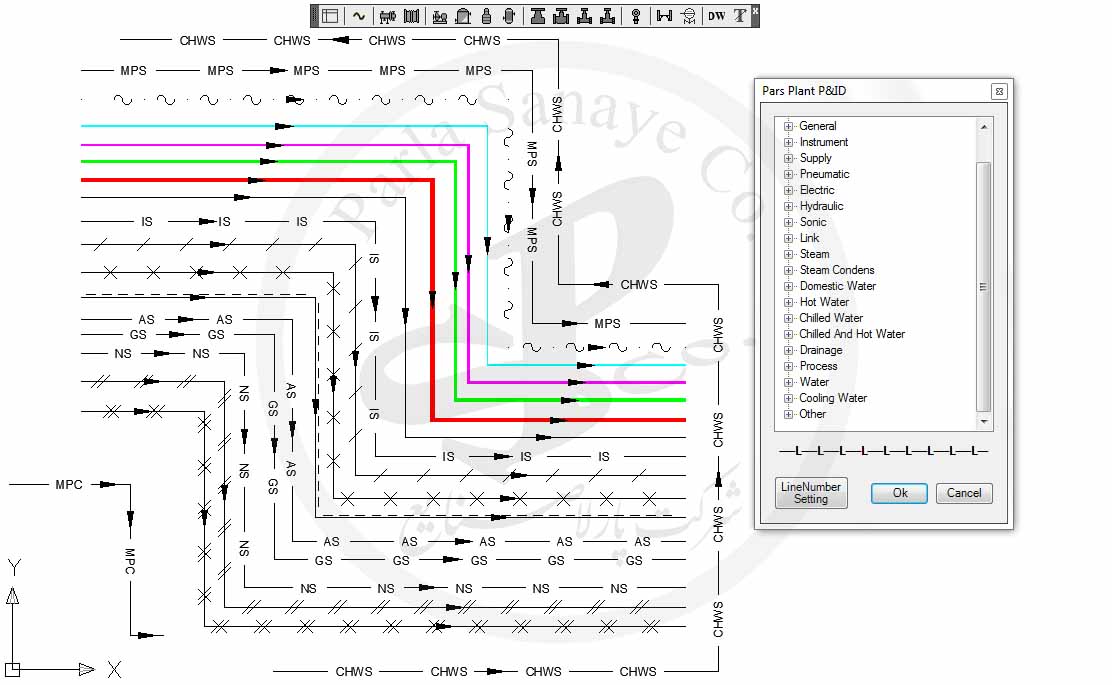

  • a Comprehensive line database which includes more than 70 Types of Lines such as : all types of Fluid lines, Electrical lines, Equipment lines, Supply lines, Sonic lines, Pneumatic lines and etc. which allow users to design all of the lines which uses in PID drawings.

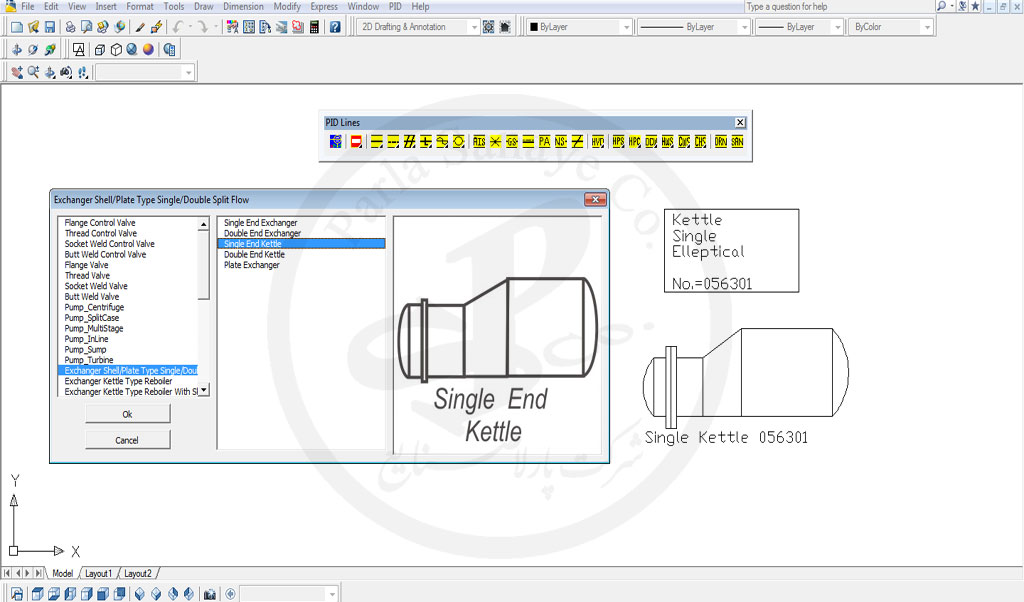

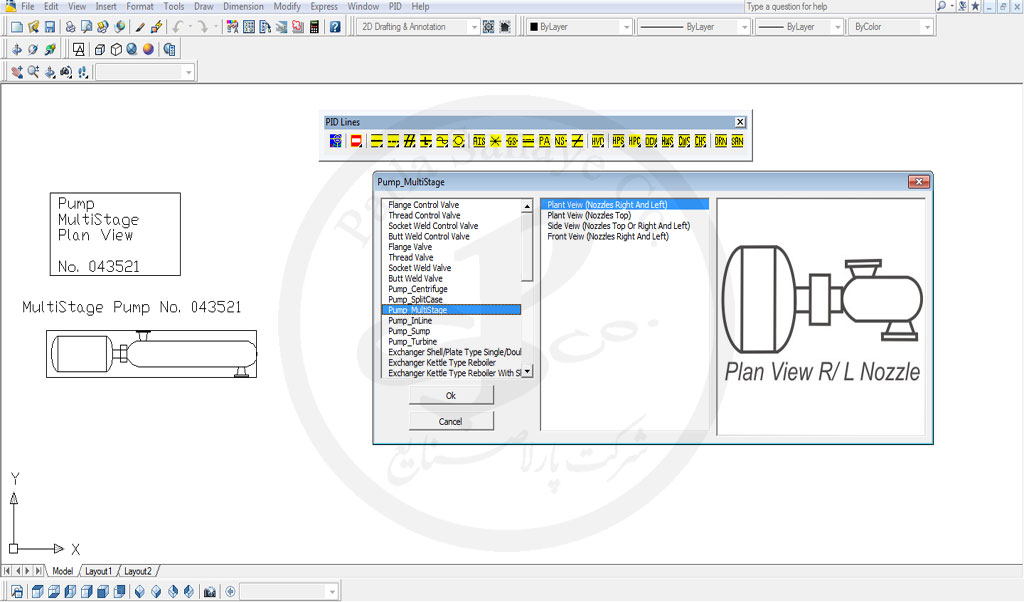

  • a Comprehensive Component Template Data base which includes more than 370 block templates which helps the user to design all of the components needed in PID drawings easily.
  • Design and Modify all of the Components and Lines
  • Design, Manage, and Arrange all the Fluid, Electrical, Supply and etc. lines and Components.
  • Manage the Data Writing Process easily
  • easy Create and Modify Line No.
  • Manage Line No. in the Drawing Process
  • the Component / Line Visibility Process
  • MTO Calculation
